商品の詳細:
|
| 名前: | ロボティック クランプ-密集したグリッパーSFG FMA6 M5043 | 負荷: | 4500g |
|---|---|---|---|
| Smax: | 20mm | 重量: | 1134g |
Robotic Clamp - Compact Gripper-SFG-FMA6-M5043
Product Description

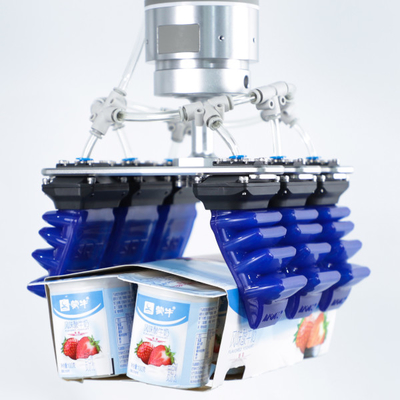

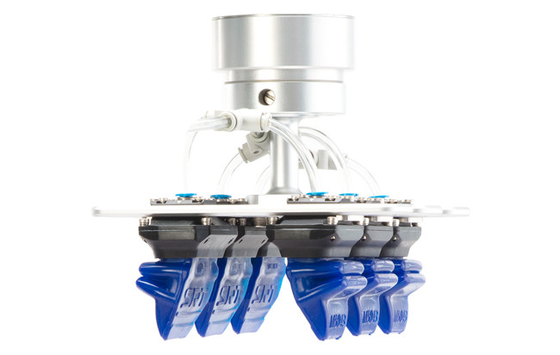

SFG Soft Flexible Gripper is an innovative flexible robotic gripper that mimics the grasping action of human hands and is bionic design. Bending deformation is achieved by air pressure input, it can adaptively cover the target object to complete the grasping action. Reverse bending is realized through the output of air pressure, and the action of placing or preparing to grab is completed.
| Model | Dimensions(mm) | Gripping Capacity | ||||||||||
| Wb | Wn | Wm | Hb | Gn | Lb | Lt | Ln | L | Smax | Ymax |
Dn+2Smax (mm) |
|
| SFG-FMA6-M5043 | 173.4 | 50 | 62 | 168.7 | 52-100 | 69 | 63.5 | 64 | 53 | 20 | 20.9 | 52-140 |
Features / Advantage
Standard working lifespan: ≥3,000,000 times
Load: 4500g
Maximum working pressure: 100 kPa
Air tube diameter: 6 mm
Weight: 1134g
Product Detail
Applications
SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:
1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.
2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.
3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.
